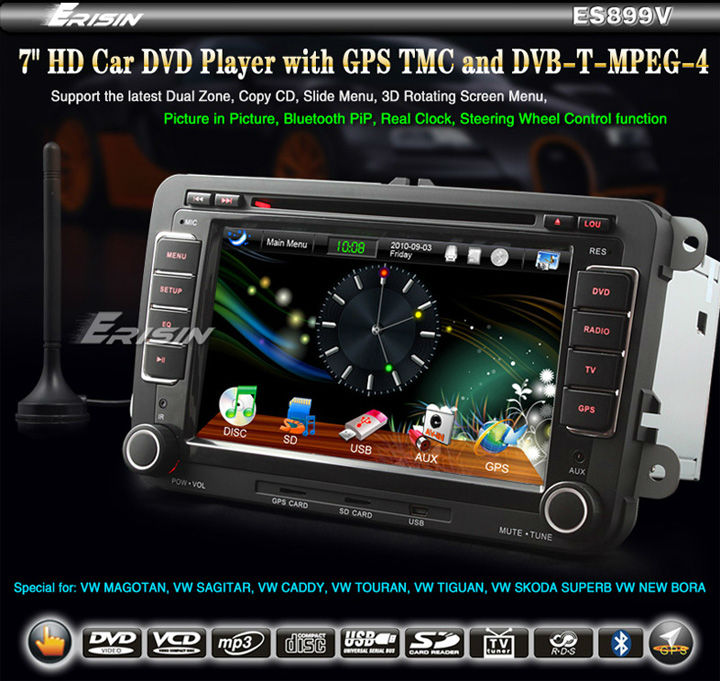

7" HD Car DVD Player GPS Sat Nav TMC DVB-T
MPEG-4 VW PASSAT SKODA BORA
This unit has built-in the latest Design and
the latest DVB-T (MPEG-4) Receiver, which can support MPEG-2 and MPEG-4 DVB-T
Signal, so it can be used almost in the whole EU-Countries. as you can see, many
DVB-T unit can only support MPEG-2 Signal, which can not be used in some EU-Countries
such as Greece/Poland/Hungary/Ireland/Norway/Portugal... but buy this unit, you
will don't have this problem. otherwise, this unit has built in the TMC (Traffic
Message Channel) Function, which can help the driver to avoid the high traffic
or traffic jam. more popular and super strong function:
HD Digital Touch Screen, fast response speed, Subwoofer adjustable, Dual Zone,

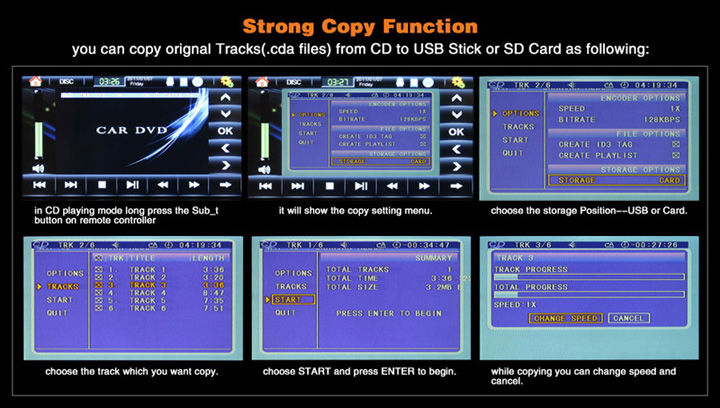

Copy CD, Slide Menu, 3D Rotating Screen Menu, Picture in Picture, GPS
Navigation, A2DP Bluetooth, Bluetooth PiP, Games, E-Book, Calendar, IPOD, USB,
SD and so on. also we sell this unit with very low price, just try it!
key Features:
- 7 Inch high definition Digital Screen, High sensitive Touch Screen
- Special for: PASSAT, MAGOTAN, SAGITAR, CADDY, TOURAN, TIGUAN, SKODA SUPERB and
NEW BORA

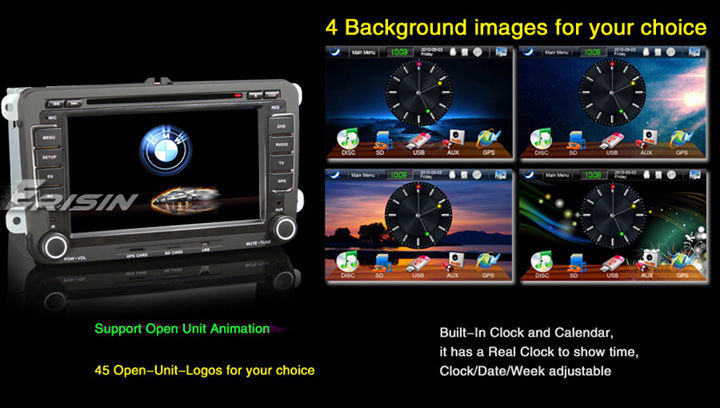

- 45 open unit logo for your Choice, support open unit Animation
- 4 x 50w Surround Stereo, Subwoofer Output
- The Subwoofer is adjustable --- only this Design has this function!
- Fluorescent Button with red light for use in the night
- Very quick reaction, with built-In Accelerator Sensor
- One button for blank screen, you can shut off Display but keep Sound in the
evening
- Built-In Clock and Calendar, it has a Real Clock to show time, Clock/Date/Week
adjustable
- Image Brightness/Contrast/Color/Saturation adjustable
- Change Background image, you can change Background images in main Menu and GPS
Menu
- 3D Rotating Screen Menu, it will show 3D Interface while change the screen
menu

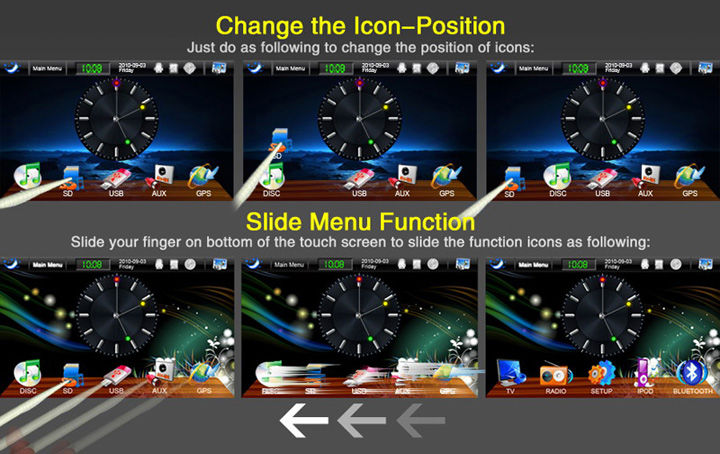

- Slide Menu on Bottom of Screen, this is the latest Slide Menu function
- Change the Icon-Position, the position of icons can be changed at will
- Multi menu language:
English/Chinese/Italian/German/French/Spanish/Arabic/Turkish/Russian/ Japanese
- Built-in GPS navigation receiver, SiRFatlas IV CPU and 128MB RAM Memory, free
2GB Micro SD Card as gift
- Built-in TMC (Traffic Message Channel) Function, which can help the driver to
avoid the high traffic or traffic jam.

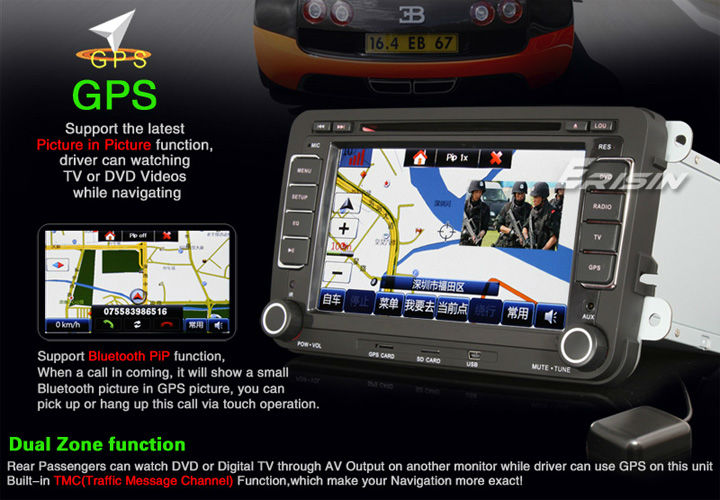

- Support the latest Picture in Picture function, driver can watching TV or DVD
Videos while navigating
- Dual zone function support, Rear Passengers can watch DVD or TV while driver
can use GPS
- Support Audio/Video/Photo/E-Book and built-in 4 Games in GPS Menu
- Support Bluetooth PiP function, you can pick up or hang up a coming call in
GPS mode
- Support A2DP Bluetooth, can play stereo music through Bluetooth from your
Phone
- Download phone book function, you can download contact information from your
phone to this unit
- Built-in the latest DVB-T (MPEG-4) Receiver, which support MPEG-2 and MPEG-4
DVB-T Signal
- Radio Tuner with RDS, 30 Preset Radio Stations (FM: 3*6, AM: 2*6)

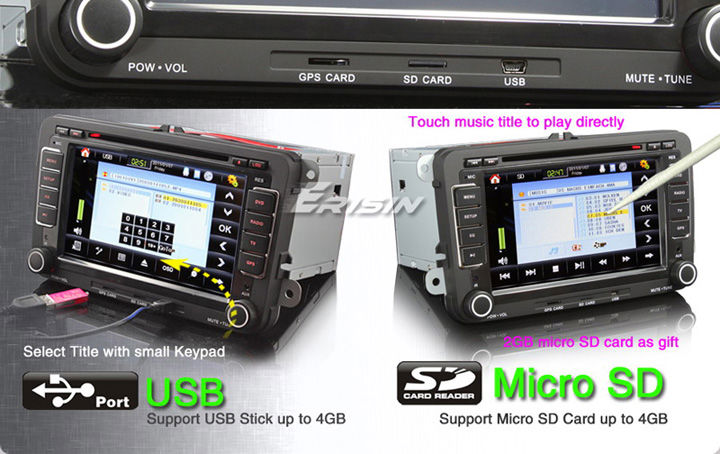

- USB Port and Micro SD Slot, Support USB Stick and Micro SD Card up to 8 GB
- Select Title with small Keypad, Touch Music Title to play directly

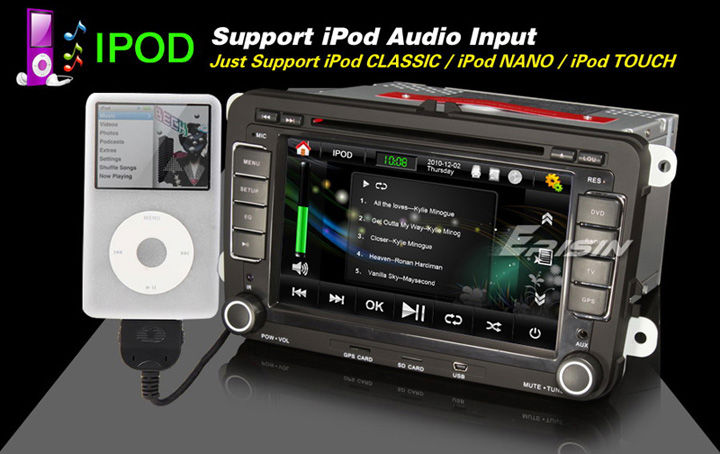

- Steering Wheel Control, Back Sight Control (for Rear Camera), IPOD input

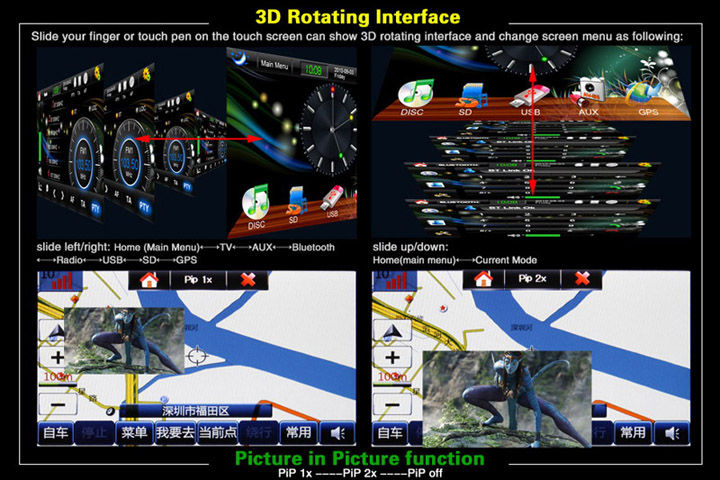

- Slide up/down on the TFT Screen can show 3D Rotating screen menu and switch
the mode
between "Home" and "Current mode"
- Slide left/right on the TFT Screen can show 3D Rotating screen menu and switch
the mode as following:
Home (Main Menu)---TV---AUX---Bluetooth---Radio---USB---SD---GPS
- Hand Brake Control, Remote Control, Anti-Shock
General
-Power Supply: DC 12V (allowable range: 10.8-14.5)
-Max Current: 10A

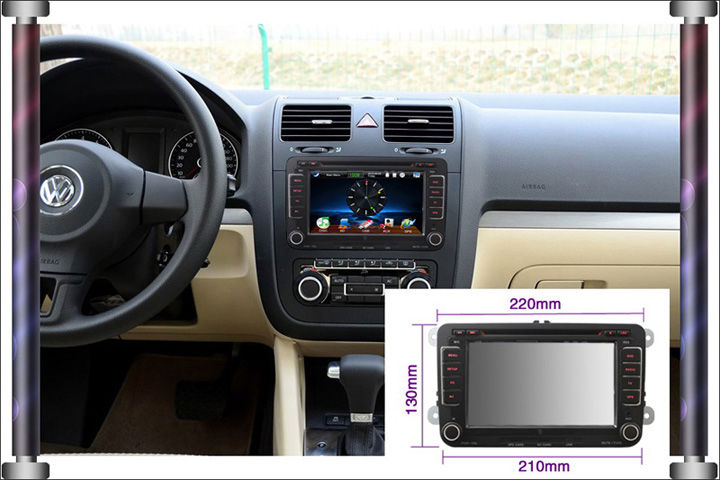

-Install Size: Normal
-Package Size: 330mm*290mm*235mm
-Gross Weight: 3.6kg
-Net Weight: 4.5kg
Display
-Screen Type : 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Built-in Clock and Calendar : Yes, it has a real clock to show time
-Display Type: User/Standard/Light/Soft
-Image adjustable parameter: Brightness/Contrast/Color
-Change Background Image：Yes, 4 Images for your Choice
-3D Rotating Screen Menu: Yes, it will show 3D images while change the screen
menu
-Slide Menu on Bottom of Screen : Yes, this is the latest icons can be changed
at will
-One Button for Blank Screen : Yes, Shut off Display but Keep Sound in Evening
-Built-in Accelerator : Yes, very fast response
-Digital or Analog : Digital Touch Screen, very vivid

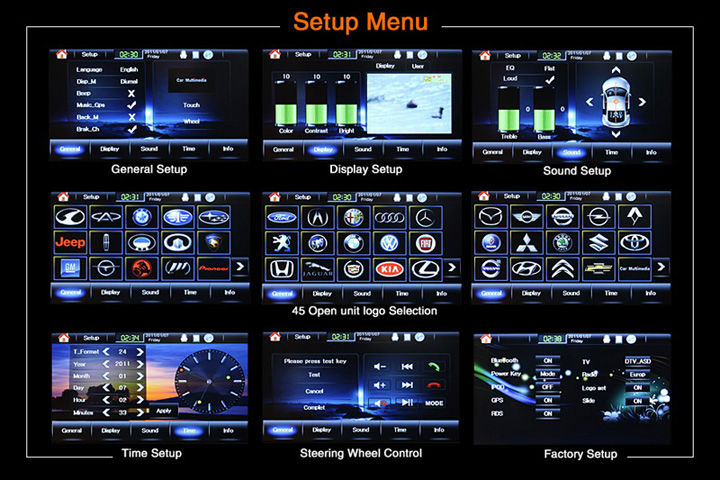

Setup
-Key volume Setup: On/Off
-Language Setup: English/Chinese/Italian/German/French/Spanish/Arabic...
-Music Navigation Setup: On/Off
-Backlight mode Setup: Diumal/Nichts
-Rear-view image Setup: On/Off
-Steering wheel Setup: Yes
-Touch screen calibration: Yes
-Hand brake Control Setup:
Yes
-Open unit logo selection: 45
-Sound Setup: EQ/Loud/Treble/Bass adjustable
-Time Setup: Clock/Date/Week adjustable
GPS
-CPU: SiRFatlas IV
-Operation System: Microsoft Windows CE.NET 6.0
-RAM Memory: 128MB
-Memory Size: Can expand to 8GB
-Supported Maps:Tomtom, I-GO, Polnav, Smart2go…
-Free 2GB SD Card included: GPS Compatible
-GPS Operation Languages: English/German/French/Spanish/Portuguese/Italian/
Chinese/Dutch/Finnish/Greek/Romanian…
-Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Picture in Picture function: Yes, switch in PiP 1x / PiP 2x / PiP off
-Bluetooth PiP function : Yes, you can pick up or hang up a
coming call in GPS mode
-Dual Zone Function: Yes
-Built-in TMC Function:Yes

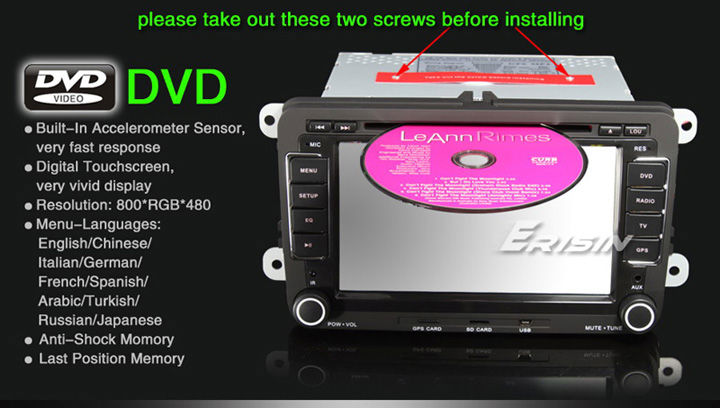

DVD
-Compatible Format: MPEG4, DVD, VCD, MP3, CD, CD-R, CD-RW, PICTURE-CD
-OSD/Audio/Subtitle Language:
English/Polish/French/Spanish/Portuguese/German/Latin
-Last-Position-Memory : Yes, expediently watch all
kinds of disc continuously

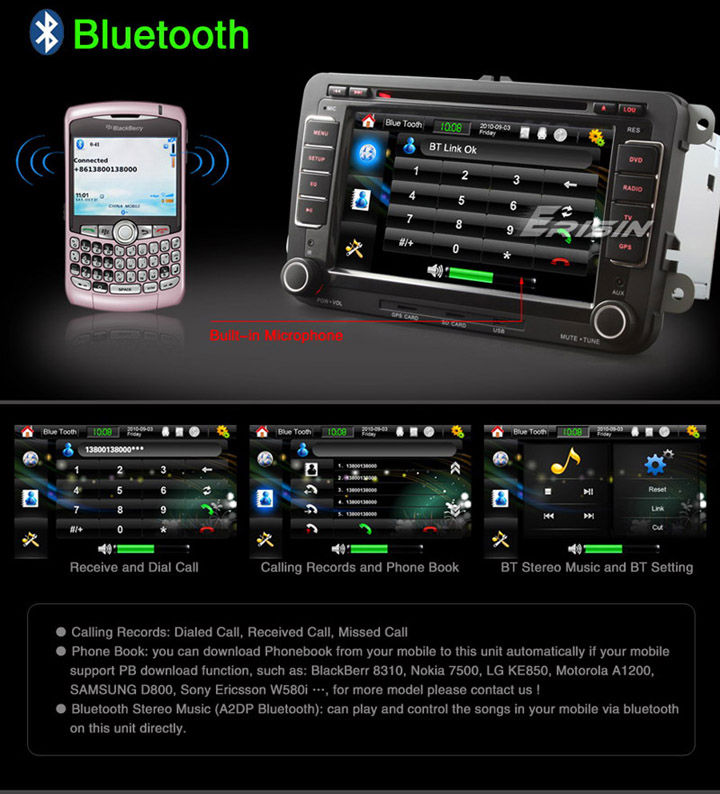

Bluetooth
-Version: V2.0
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes
-Phone Book : Yes, can download Phonebook from mobile to this
unit
-Call Records: Dialed Call, Received Call, Missed Call
-Setup: Reset/Link/Cut

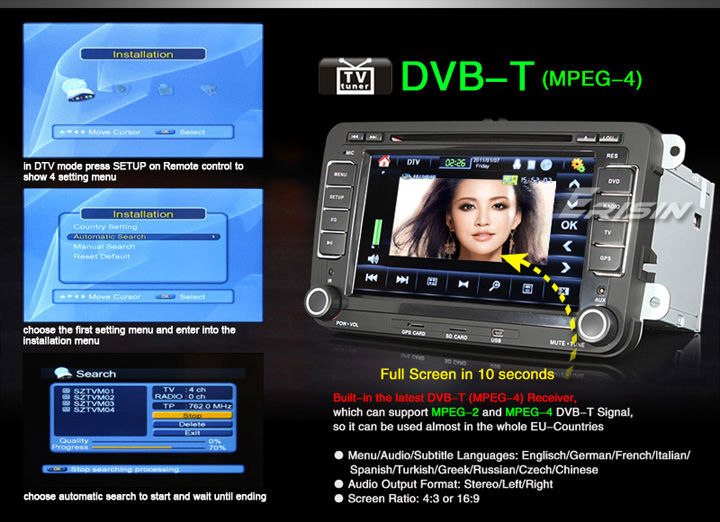

DVB-T
-Built-in DVB-T (MEPG 4): Yes, support MEPG 2 and MEPG 4 Signal
-Menu/Audio Languages:
English/French/German/Italian/Spanish/Chinese...
-Full Screen in 10 seconds: Yes
-Digital TV antenna Interface: Yes, on the back

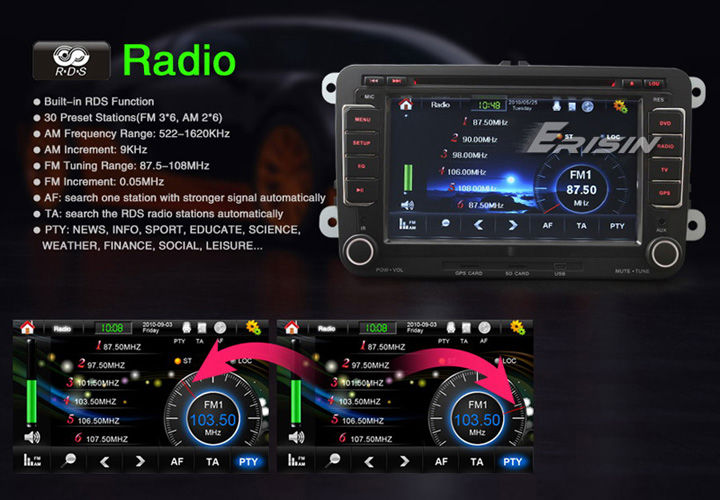

Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)
USB
-Position: On the front Panel
-Capacity: 8GB
-Select Title with small Keypad: Yes
-Touch Music title to play directly : Yes
SD
- Position : On the front Panel ( Micro SD Card Slot)
-Capacity : 8GB
-Select Title with small Keypad : Yes
-Touch Music title to play directly : Yes

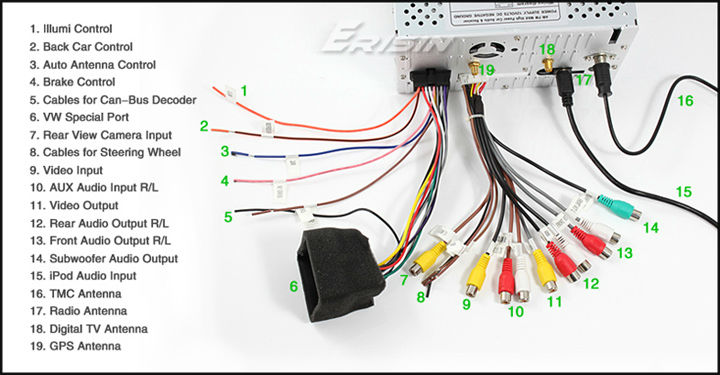

Input
-AUX Video In: One
-Camera Video In : One
-Ipod In: One
-AUX Audio In: R/L
-Digital TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Back Sight Control: Yes
-Auto Antenna Control: Yes
-Hand brake Control: Yes
-Auto Mute Control: Yes
-Slide up/down on the Touch Screen: can switch the
model between home and current mode
-Slide left/right on the Touch Screen: can switch the
mode (TV, Radio, USB, SD,BT...)

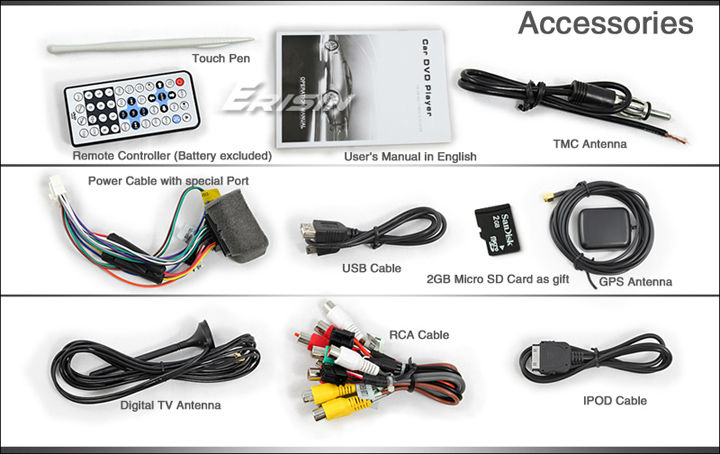

Accessories
-User's Manual in English: One
-Remote Controller (Battery excluded): One
-Power Cable with special port : One
-RCA Cable: Two
-USB Cable: One
-GPS Antenna: One
-Free 2GB SD Card as gift: One
-Digital TV Antenna: One
-TMC Antenna: One
-Ipod Cable: One
-USB Cable: One
-Touch pen: One
-Fitting Kits : One
