7" LCD HD Car DVD Player TMC PiP Sat Nav

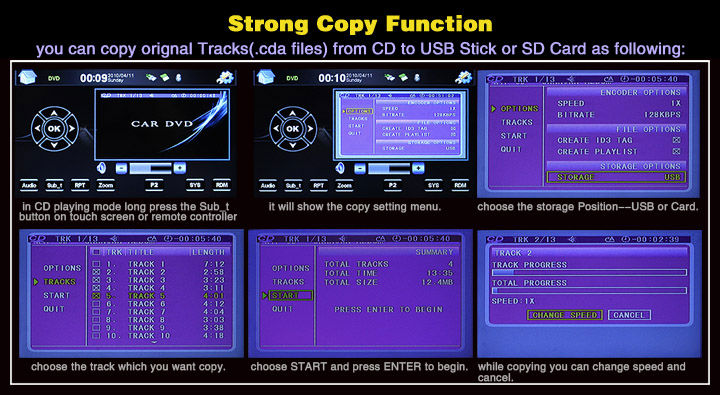

Super Digital Touch Screen Car DVD Player with TMC, Compared with the traditional Car DVD, you can find the display effect is obvious clearer than normal ones on the market. Also the response speed is faster with accelerator built in, more super strong functions: slide menu, PIP,Copy CD, DVB-T,GPS and so on, just try it!
Also please note it has Multi-language' initial Menu, English/French/German/Italian/Spanish/Turkish/Arabic/Russian/Japanese/Chinese, you can check, now most DVD Player on the market just has English initial Menu, Multi-language' Menu just for GPS and DVD, right? now our this DVD has all Menus with Multi-language Choice. Do not hesitate!
key Features:
- ISO 2 Din Size , 7 Inch TFT-LCD Touch Screen
- 4 x 50w Surround Stereo, Subwoofer Output
- Motorized & Slide-down Control Panel
- Very quick reaction, with built-In Accelerometer Sensor
- Built-in TMC (Traffic Message Channel) Function, which make your Navigation more exactly
- Fluorescent Button for use in the night
- Image Brightness/Contrast/Color/Saturation adjustable
- Built-in GPS navigation receiver, Free 2GB SD Card as Gift
- Dual zone function support, You can enjoy music and radio while navigation
- Rear Passengers can watch DVD or Digital TV while driver can use GPS

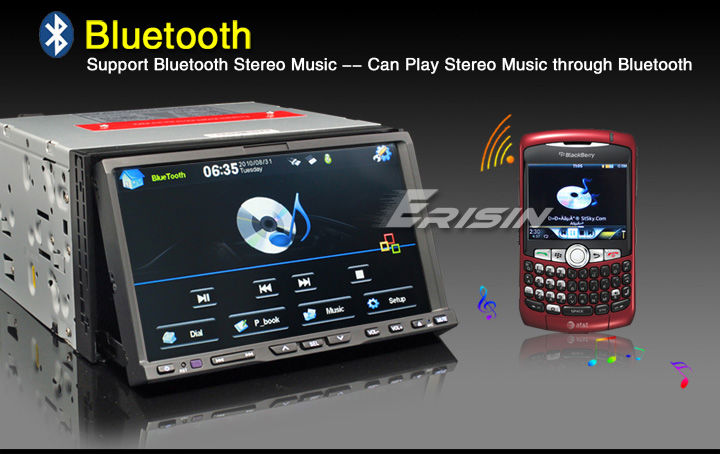

- Support A2DP Bluetooth, can play stereo music through Bluetooth
- Built-in the latest DVB-T-HD Box, you can watching vivid digital TV while driving
- Built-in Native games
- Radio Tuner with RDS, 30 Preset Radio Stations

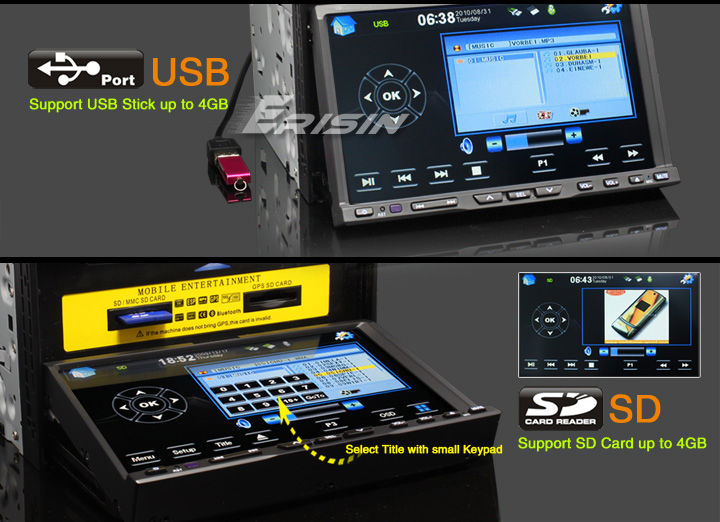

- USB Port and SD Slot, Support USB Stick and SD Card up to 8 GB
- Select Title with small Keypad
- Steering Wheel Control, Back Sight Control (for Rear Camera)

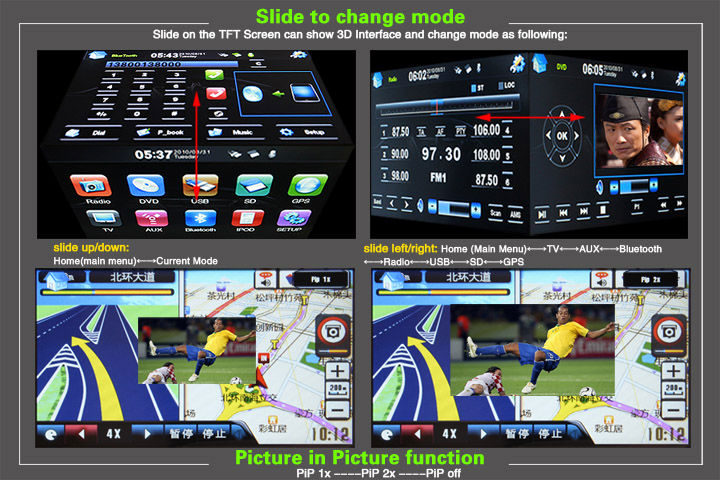

- Slide up/down on the TFT Screen can slide up/down the angle of TFT Screen
- Slide left/right on the TFT Screen can switch the mode as following:
- From left to right: Home (Main Menu)---DTV---AUX---Bluetooth---Radio---USB---SD---GPS
- From right to left: Home (Main Menu)---SD---USB---Radio---Bluetooth---AUX---DTV---GPS
- IPod Control
- Anti-Shock
- Hand Brake detecting
- Remote Control
- Very Vivid Digital Screen
- Resolution: 800*RGB*480
- Support the latest Picture in Picture function (in GPS mode), it has 3 viewing mode, pip 1x, pip 2x and pip off

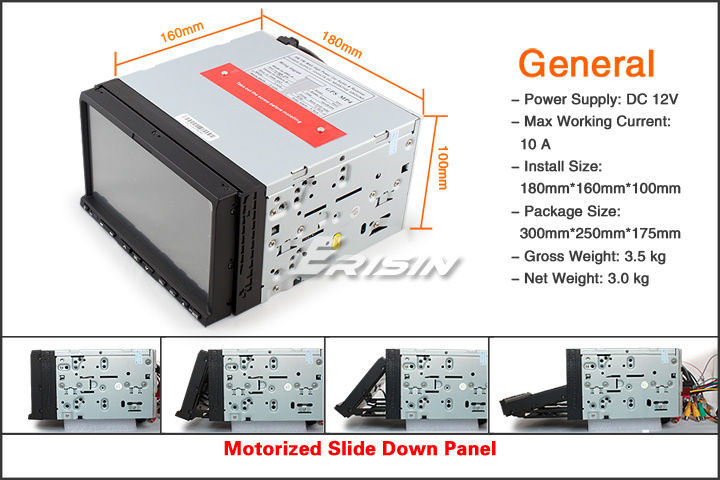

General
-Power Supply: DC 12V (allowable range: 10.8-14.5)
-Max Current: 10A
-Install Size: 180mm*160mm*100mm
-Package Size: 300mm*250mm*175mm
-Gross Weight: 3.5kg
-Net Weight: 3.0kg
Display
-Screen Type: 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Built-in LCD Clock Display Function: Yes, with Date and Week
-Display Type: User/Standard/Light/Soft
-Image adjustable parameter: Brightness/Contrast/Color
-Built-in Accelerator: Yes, very fast response
-Digital or Analog : Digital Touch Screen, very vivid

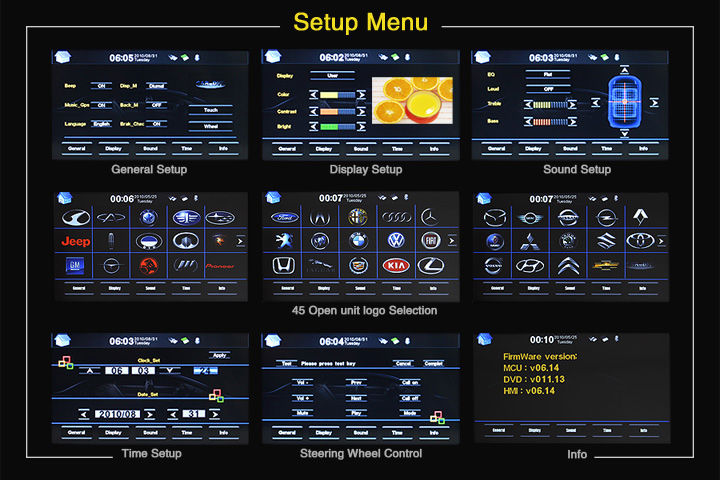

Setup
-Key volume Setup: On/Off
-Language Setup: English/Chinese
-Music Navigation Setup: On/Off
-Backlight mode Setup: Diumal/Nichts
-Rear-view image Setup: On/Off
-Steering wheel Setup: Yes
-Touch screen calibration: Yes
-Manual brake test Setup: Yes
-Open unit logo selection: 45
-Sound Setup: EQ/Loud/Treble/Bass adjustable
-Time Setup: Clock/Date/Week adjustable
Panel
-Motorized Slide Down Panel : Yes
-Detachable control Panel : No
-Fluorescent Button : Yes

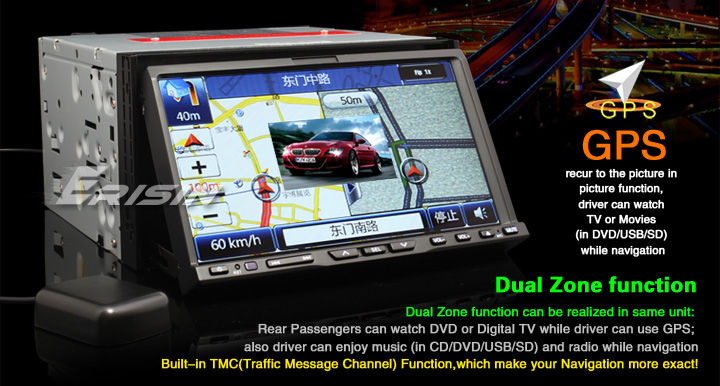

GPS
-Operation System: Microsoft Windows CE.NET 6.0
-CPU: SiRFatlas IV
-RAM Memory: 128MB
-Memory Size: Can expand to 8GB
-Supported Maps: I-GO, Polnav, Smart2go…
-Free 2GB SD Card included: GPS Compatible
-GPS Operation Languages: English/German/French/Spanish/Portuguese/Italian/ Chinese/Dutch/Finnish/Greek/Romanian… -Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Picture in Picture function: Yes, switch in PiP 1x / PiP 2x / PiP off
-Dual Zone Function: Yes
-Built-in TMC Function : Yes

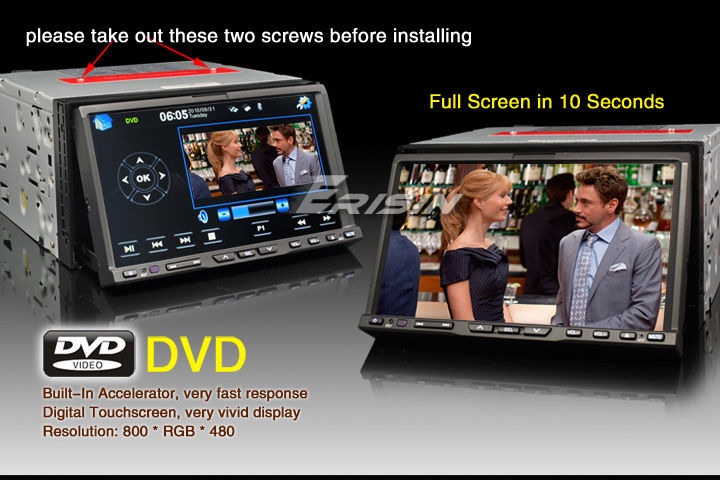

DVD
-Compatible Format: MPEG4, DVD, VCD, MP3, CD, CD-R, CD-RW, PICTURE-CD
-OSD/Audio/Subtitle Language: English/Polish/French/Spanish/Portuguese/German/Latin
-Auto-Save Function : Yes, expediently watch all kinds of disc continuously
Bluetooth
-Version: V2.0
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes

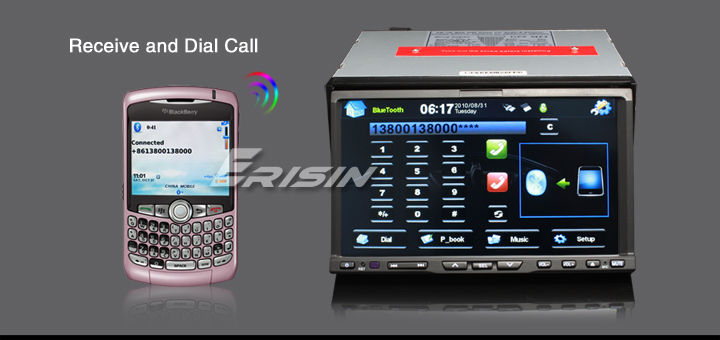

-Phone Book: Dialed Call, Received Call, Missed Cal
-Setup: Reset/Link/Cut

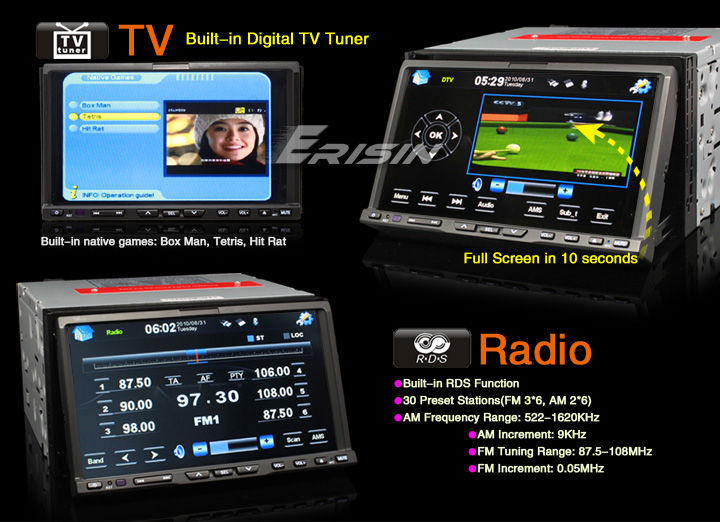

DVB-T
-Built-in DVB-T: Yes, Digital TV tuner
-Built-in Native games : Box Man, Tetris, Hit Rat
-Full Screen in 10 seconds: Yes
-Digital TV antenna Interface: Yes, on the back
Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)
USB
-Position: On the Back of the unit
-Capacity: 8GB
-Select Title with small Keypad: Yes
-Touch title to play: No
SD
- Position : Behind the Panel
-Capacity : 8GB
-Select Title with small Keypad : Yes
-Touch Title to play : No

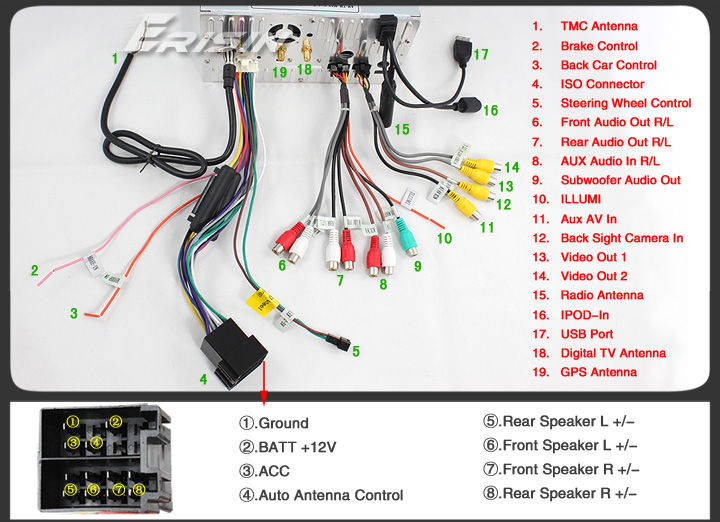

Input
-AUX Video In: One
-Camera Video In : One
-Ipod In: One
-AUX Audio In: R/L
-Digital TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Back Sight Control: Yes
-Hand brake detecting Control: Yes
-Auto Mute Control: Yes
-Slide up/down on the TFT Screen: can slide up/down the angle of TFT Screen
-Slide left/right on the TFT Screen: can switch the mode (TV, Radio, USB, SD, BT, AUX, GPS)

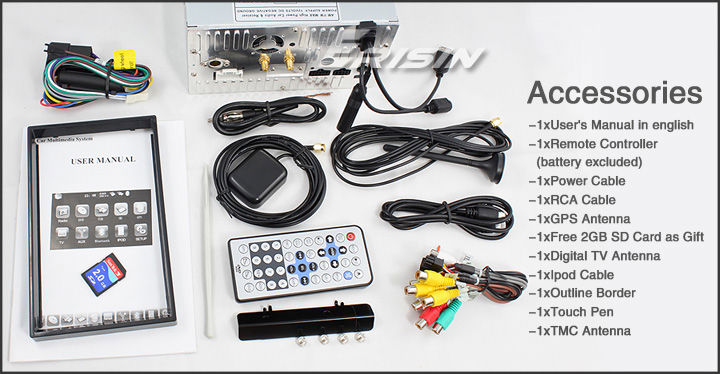

Accessories
-User's Manual in English: One
-Remote Controller (Battery excluded): One
-Power Cable : One
-RCA Cable: Two
-GPS Antenna: One
-Free 2GB SD Card as gift: One
-Digital TV Antenna: One
-Ipod Cable: One
-Outline Border : One
-TMC Antenna : One
