key Features:

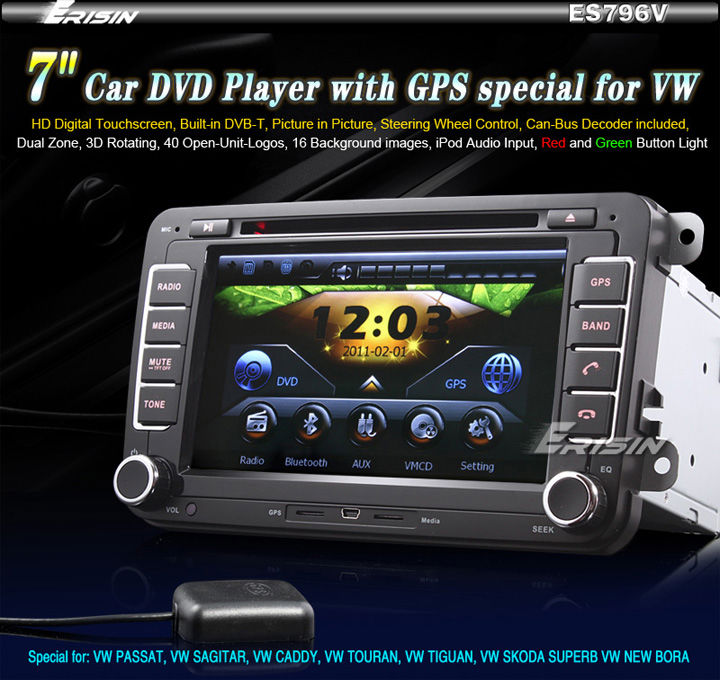

This is the newest Design with Real Picture in Picture function, it can display small DVD/USB/SD Picture
(PiP 1x, PiP 2x) in GPS/Setting/Main Menu (as Background Picture), so you can watching films/videos
while GPS Navigating, this unit has 16 Background images and 2 Button LED Light Colors for your choice, also the VW Can-Bus Decoder is included, it costs ca. USD45 on the Market, we sell this unit with very low price! just try it!
- Special for: PASSAT, MAGOTAN, SAGITAR, CADDY, TOURAN, TIGUAN, SKODA SUPERB and NEW BORA
- 7 Inch (16:9) wide screen Monitor, super Sensitive Touch Screen Control
- High definition Digital Screen, Resolution: 800*RGB*480
- 3D Rotating Screen Menu, it will show 3D Interface while change the screen menu
- Compatible with MP4 AVI WMA DVD VCD MP3 JPG…
- 2 Button Light Color for your Choice: Red and Green
- 40 Open Unit Logo and 16 Background images for your Choice
- Button Voice on/off, GPS Voice on/off
- One Button for Black Screen and you can also setting Display-Auto-Black time
- Support the latest Picture in Picture function
- It can display small DVD/USB/SD Picture in GPS/Setting/Main Menu (as Background Picture)

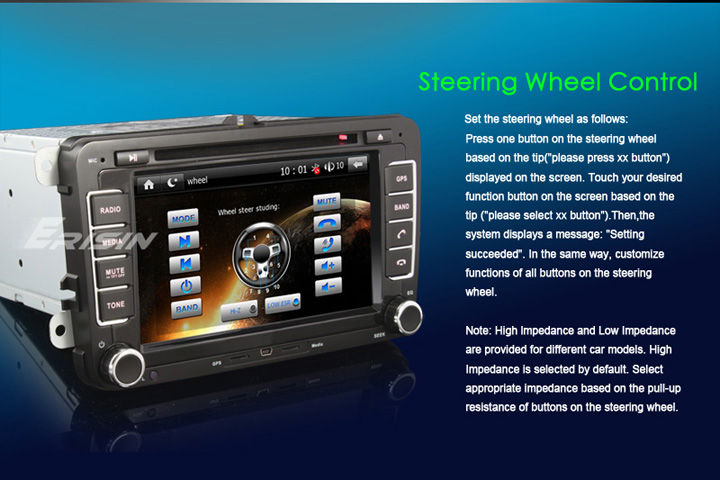

- Support Steering Wheel Control, support Subwoofer Audio Output
- Multi menu languages: English/Chinese/Portuguese/Spain/French/German/Russian/Arabic
- Built-in GPS navigation receiver, 128MB Flash Memory, free 2GB Micro SD Card as gift
- Dual zone function support, Rear Passengers can watch DVD or TV while driver can use GPS
- Built-In Bluetooth Function, support A2DP Bluetooth, can play stereo music through Bluetooth
- Radio Tuner, 30 Preset Radio Stations, with RDS function
- Built in VHF/UHF TV Tuner, 95 Preset TV Stations
- With High Power Output 4X50W, Time setting and display
- USB Port and Micro SD Slot, Support USB Stick and TF Card up to 8GB
- Touch Music title to play directly, Select Title with small Keypad
- Built-in Microphone, Electronic Anti-Shock, support iPod Audio input
- Back Sight Control, Hand Brake Control, Remote Control
General
-Power Supply: DC 12V (allowable range: 10.8-14.5)
-Max Current: 10A

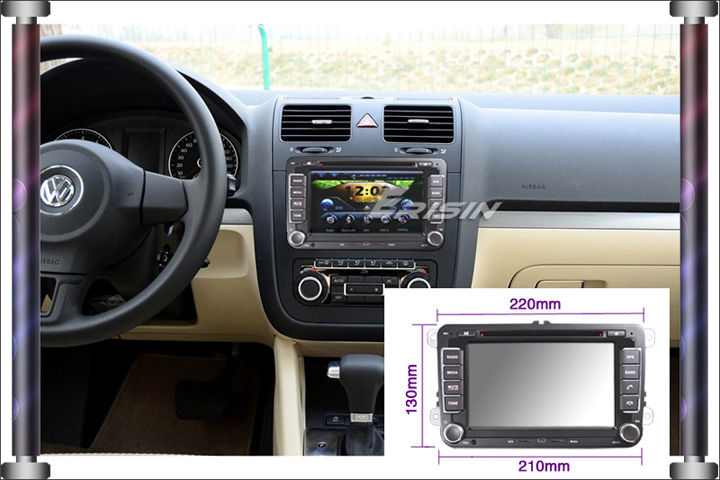

-Install Size: Normal
-Package Size: 310mm*300mm*200mm
-Net Weight: 4kg
-Gross Weight: 3.4 kg
Display
-Screen Type: 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Built-in LCD Clock Display Function: Yes
-Built-in Accelerator: Yes, very fast response
-3D Effect while change the mode : Yes
-Touch one Button to display black: Yes
-Digital or Analog: Digital touch screen, very vivid

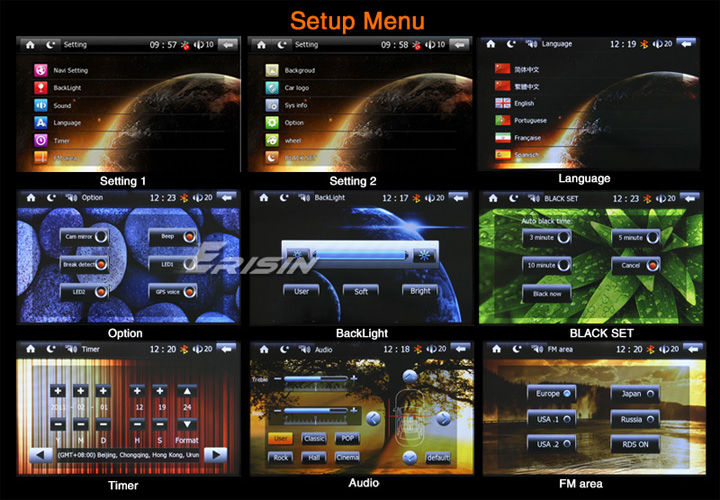

Setup
-Backcar Camera : Normal/Mirror
-Beep (Button Voice) GPS Voice: On/Off
-Button Light LED Color: RED/Green
-Menu Language Setup: English/Chinese/Portuguese/Spain/French/German....
-Sound Setup: User/Classic/POP/Hall/Cinema
-Time Setup : Yes
-Sound setup: User/Classic/POP/Rock/Hall/Cinema
-Backlight etup: User/Soft/Bright
-Background images Setup: 16 images for choose
-Open unit logo selection: 40
-Steering wheel Control : Yes
-Display auto black Time : 0/3/5/10 Minutes
-FM Area Setup: Europe/America 1/America 2/ Russia
-RDS Setup : on/off
-Factory Setup: Yes. Code: 8888

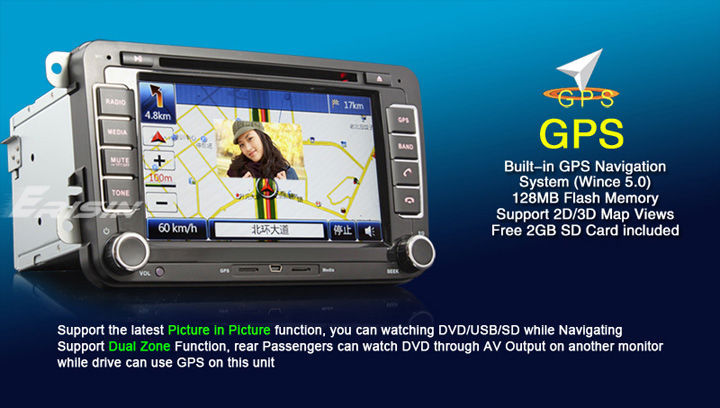

GPS
-GPS Model: SiRF STAR III
-Operation System: Microsoft Windows CE.NET 5.0
-CPU : SAMSUNG 2461
-RAM Memory: 128MB
-Memory Size: Can expand to 8GB
-Supported Maps: TOMTOM,I-GO, Polnav, …
-Free 2GB TF Card included: Yes
-GPS Operation Languages: English/German/French/Spanish/Portuguese/Italian/ Chinese/Dutch/Finnish/Greek/Romanian…
-Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Picture in Picture function: Show small DVD/USB/SD Picture in GPS/Setup/Home Background
-Dual Zone Function: Yes

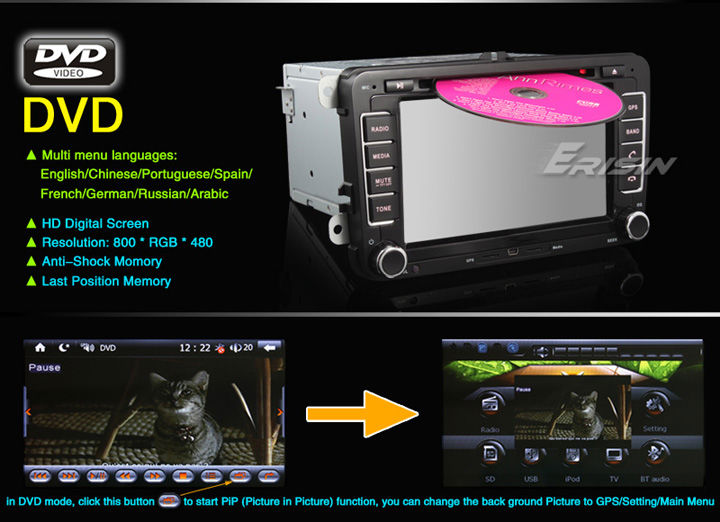

DVD
-Compatible Format: MPEG4,AVI,DIVX, DVD, VCD, MP3, CD, WMA.JPEG
-OSD/Audio/Subtitle Language: English/Polish/French/Spanish/Portuguese/German/Latin
-Position of Disc Slot : Behind the detachable Panel
-Auto-Save Function: Yes, expediently watch all kinds of disc continuously
Bluetooth
-Dial call on this unit: Yes
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes
-Call Records: Dialed Call, Received Call, Missed Call
-Bluetooth Music Control : Yes, Play/Pause/Previous/next

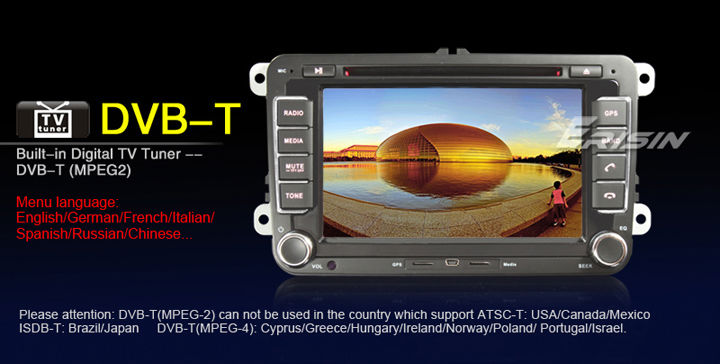

DVB-T
-Built-inDVB-T: Yes, Digital TV Tuner
-OSD Languages: English/French/German/Italian/Spanish/Dutch/Greek…
-Full Screen in 10 Seconds: Yes
-Digital TV Antenna Interface: Yes, on the back
Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)

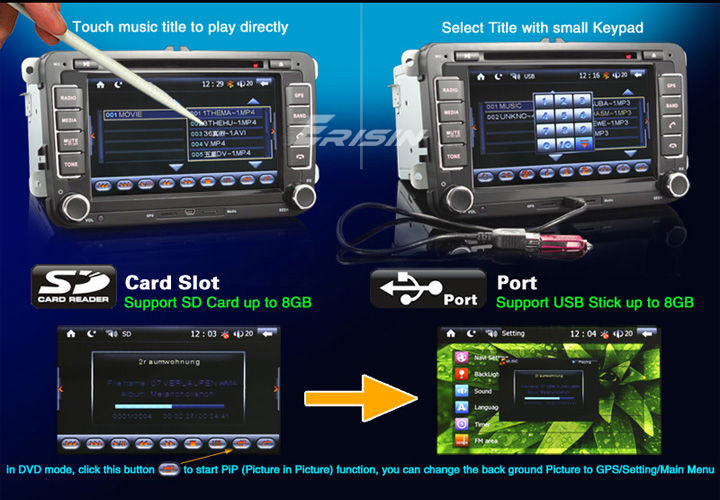

USB
-Position: On the front Panel and on the back of this unit
-Capacity: 8GB
-Show Album/Artist/Time: Yes
-Select Title with small Keypad: Yes
-Touch title to play: Yes
SD
-Position: On the front Panel
-Capacity: 8GB
-Show Album/Artist/Time: Yes
-Select Title with small Keypad: Yes
-Touch title to play: Yes

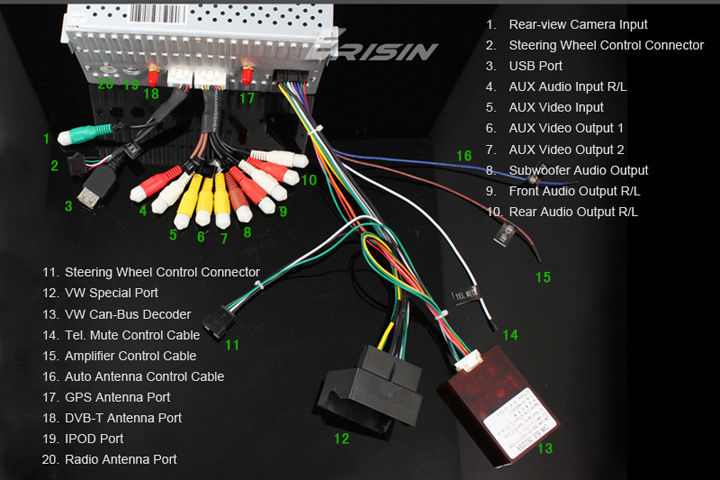

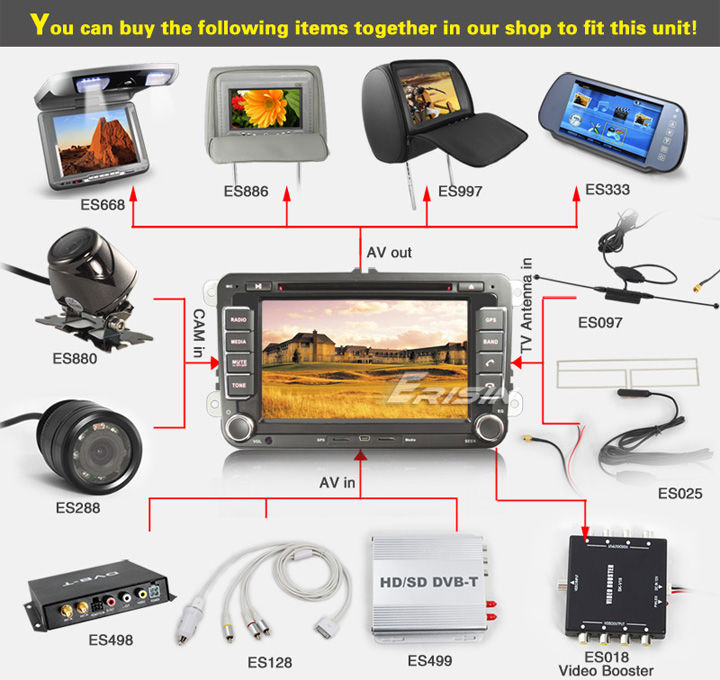

Input
-AUX Video In: One
-Backcar Camera Video in: One
-Ipod Audio input: One
-AUX Audio In: R/L
-TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Back Sight Control: Yes
-Auto Antenna Control: Yes
-Hand brake detecting Control: Yes
-Auto Mute Control: Yes

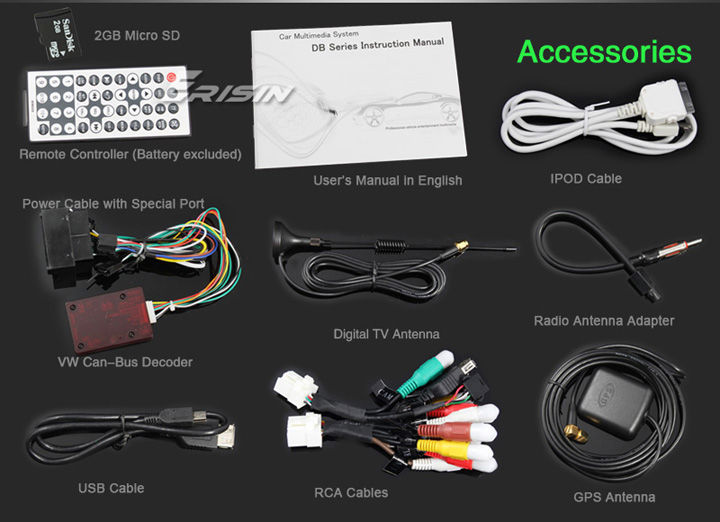

Accessories
-User's Manual in English: One
-Remote Controller (Battery excluded): One
-Power Cable with special port: One
-VW Can-Bus Decoder: Yes
-RCA Cable: Two
-GPS Antenna: One
-Radio Antenna Adapter: One
-2GB Micro SD Card : One
-USB Cable: One
-DVB-T Antenna: One
-Touch pen: One
-IPOD Cable: One
