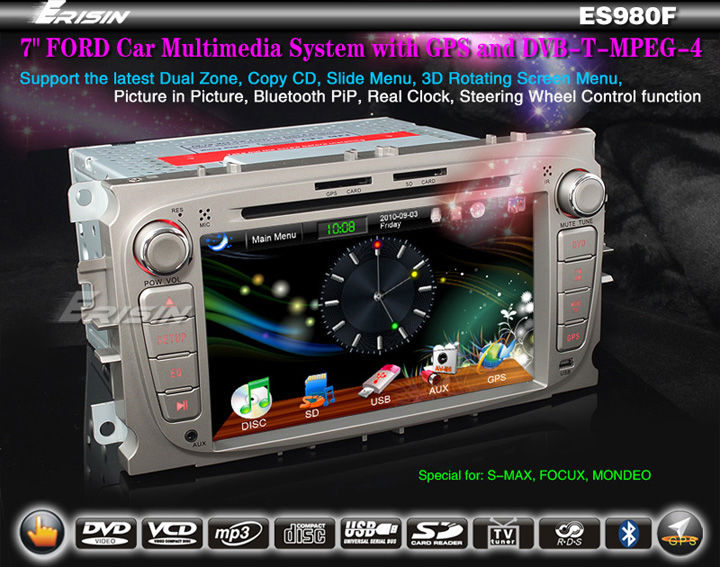

7" HD Car DVD Player GPS Sat Nav DVB-T MPEG-4 FORD FOCUS MONDEO
key Features:
This unit has built-in the latest Design and the latest DVB-T (MPEG-4) Receiver, which can support MPEG-2 and MPEG-4 DVB-T Signal, so it can be used almost in the whole EU-Countries. as you can see, many DVB-T unit can only support MPEG-2 Signal, which can not be used in some EU-Countries such as Greece/Poland/Hungary/Ireland/Norway/Portugal... but buy this unit, you will don't have this problem. otherwise, this unit has built-in the most popular and super strong function:
HD Digital Touch Screen, fast response speed, Subwoofer adjustable, Dual Zone, Copy CD, Slide Menu, 3D Rotating Screen Menu, Picture in Picture, GPS Navigation, A2DP Bluetooth, Bluetooth PiP, Games, E-Book, Calendar, IPOD, USB, SD and so on. also we sell this unit with very low price, just try it!
- 7 Inch high definition Digital Screen, High sensitive Touch Screen
- Special for: S-MAX, FOCUX, MONDEO
- 45 open unit logo for your Choice, support open unit Animation
- 4 x 50w Surround Stereo, Subwoofer Output
- The Subwoofer is adjustable --- only this Design has this function!
- Fluorescent Button with red light for use in the night
- Very quick reaction, with built-In Accelerator Sensor
- One button for blank screen, you can shut off Display but keep Sound in the evening
- Built-In Clock and Calendar, it has a Real Clock to show time, Clock/Date/Week adjustable
- Image Brightness/Contrast/Color/Saturation adjustable

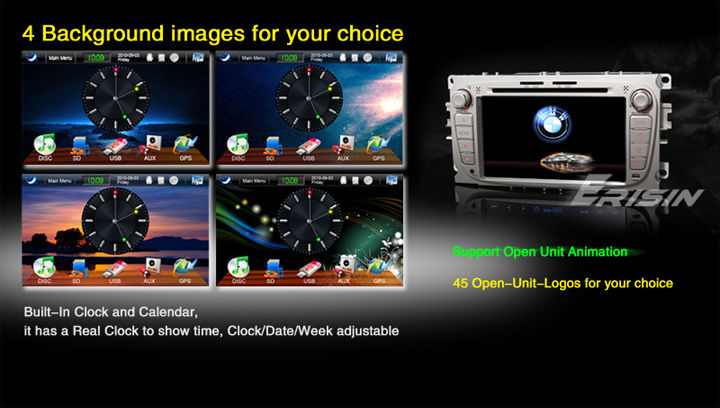

- Change Background image, you can change Background images in main Menu and GPS Menu
- 3D Rotating Screen Menu, it will show 3D Interface while change the screen menu

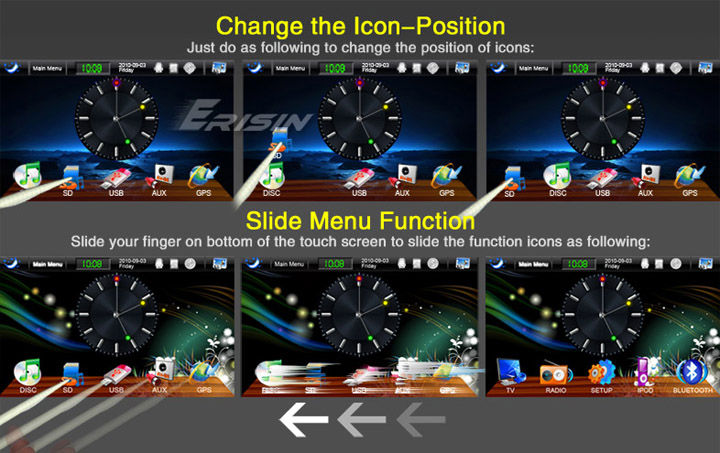

- Slide Menu on Bottom of Screen, this is the latest Slide Menu function
- Change the Icon-Position, the position of icons can be changed at will
- Multi menu language: English/Chinese/Italian/German/French/Spanish/Arabic/Turkish/Russian/ Japanese
- Built-in GPS navigation receiver, SiRFatlas IV CPU and 128MB RAM Memory, free 2GB SD Card as gift

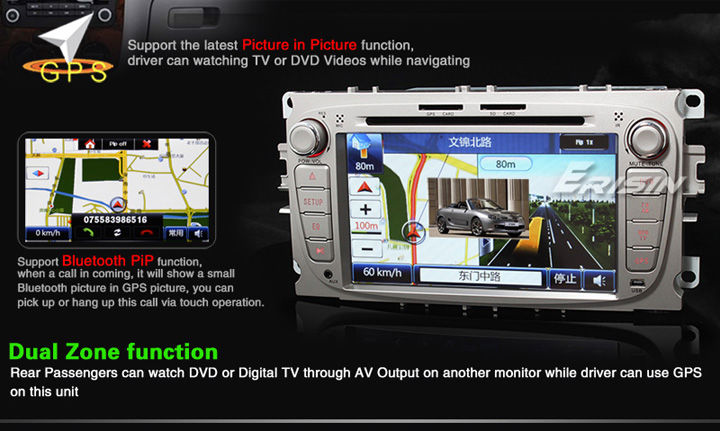

- Support the latest Picture in Picture function, driver can watching TV or DVD Videos while navigating
- Dual zone function support, Rear Passengers can watch DVD or TV while driver can use GPS
- Support Audio/Video/Photo/E-Book and built-in 4 Games in GPS Menu
- Support Bluetooth PiP function, you can pick up or hang up a coming call in GPS mode
- Support A2DP Bluetooth, can play stereo music through Bluetooth from your Phone
- Download phone book function, you can download contact information from your phone to this unit
- Built-in the latest DVB-T (MPEG-4) Receiver, which support MPEG-2 and MPEG-4 DVB-T Signal
- Radio Tuner with RDS, 30 Preset Radio Stations (FM: 3*6, AM: 2*6)
- USB Port and SD Slot, Support USB Stick and SD Card up to 8 GB
- Select Title with small Keypad, Touch Music Title to play directly
- Steering Wheel Control, Back Sight Control (for Rear Camera), IPOD input

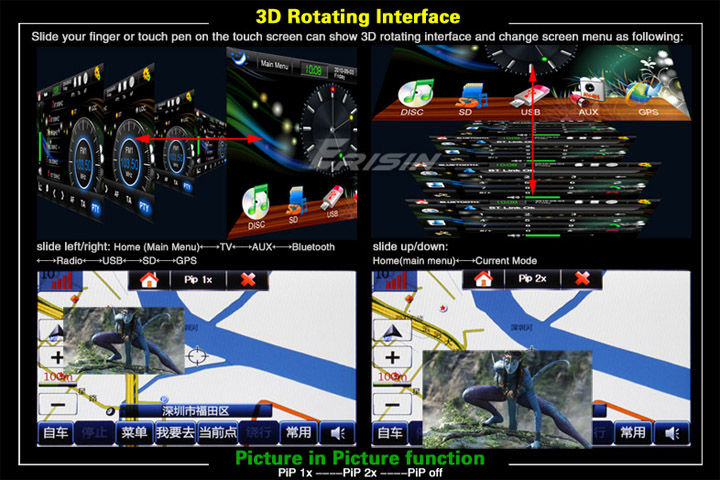

- Slide up/down on the TFT Screen can show 3D Rotating screen menu and switch the mode
between "Home" and "Current mode"
- Slide left/right on the TFT Screen can show 3D Rotating screen menu and switch the mode as following:
Home (Main Menu)---TV---AUX---Bluetooth---Radio---USB---SD---GPS
- Hand Brake Control, Remote Control, Anti-Shock
General
-Power Supply: DC 12V (allowable range: 10.8-14.5)
-Max Current: 10A

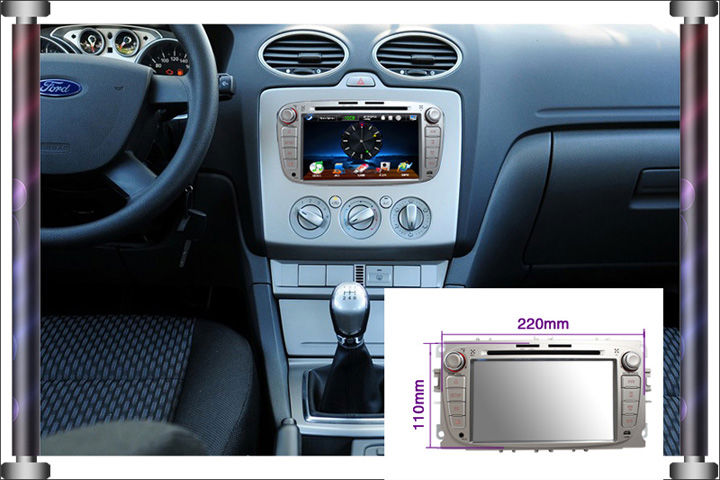

-Install Size: Normal
-Package Size: 330mm*290mm*235mm
-Net Weight: 3.6 kg
-Gross Weight: 4.5 kg
Display
-Screen Type: 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Built-in Clock and Calendar: Yes, it has a real clock to show time
-Display Type: User/Standard/Light/Soft
-Image adjustable parameter: Brightness/Contrast/Color
-Change Background image: Yes, four images for your choice
-3D Rotating Screen Menu: Yes, it will show 3D images while change the screen menu
-Slide Menu on Bottom of Screen: Yes, this is the latest slide menu function
-Change the icon-position: Yes, the position of icons can be changed at will
-One button for blank screen: Yes, shut off display but keep sound in the evening
-Built-in Accelerator: Yes, very fast response
-Digital or Analog: Digital touch screen, very vivid

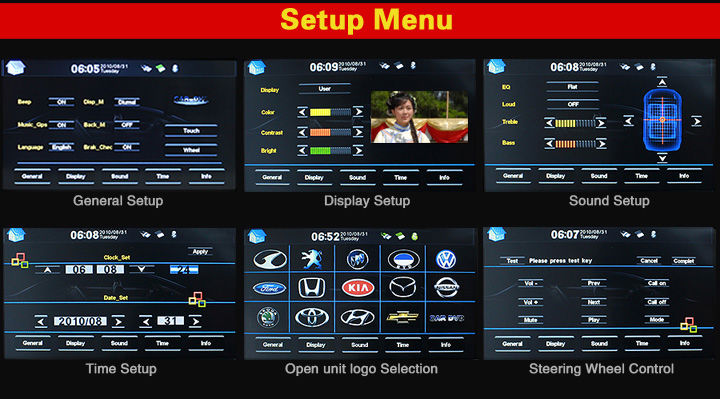

Setup
-Key volume Setup: On/Off
-Menu Language Setup: English/Chinese/Italian/German/French/Spanish/Arabic...
-Music Navigation Setup: On/Off
-Backlight mode Setup: Diumal/Nichts
-Rear-view image Setup: On/Off
-Steering wheel Setup: Yes
-Touch screen calibration: Yes
-Manual brake test Setup: On/Off
-Open unit logo selection: 45
-Sound Setup: EQ/Loud/Treble/Bass adjustable
-Time Setup: Clock/Date/Week adjustable
GPS
-Operation System: Microsoft Windows CE.NET 6.0
-CPU: SiRFatlas IV
-RAM Memory: 128MB
-Memory Size: Can expand to 8GB
-Supported Maps: TOMTOM,I-GO, Polnav, Smart2go…
-Free 2GB SD Card included: Yes
-GPS Operation Languages: English/German/French/Spanish/Portuguese/Italian/ Chinese/Dutch/Finnish/Greek/Romanian…
-Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Picture in Picture function: Yes, switch in PiP 1x / PiP 2x / PiP off
-Bluetooth PIP function: Yes, you can pick up or hang up a coming call in GPS mode
-Dual Zone Function: Yes

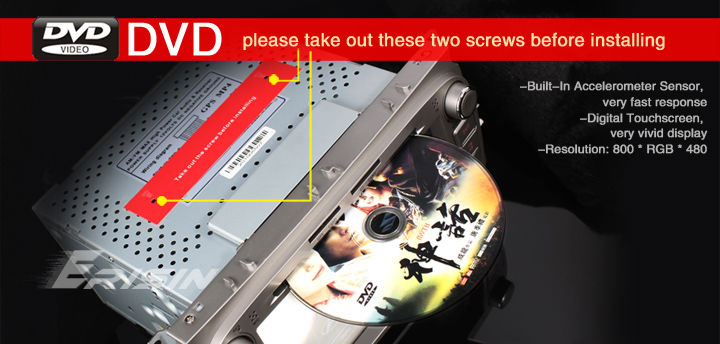

DVD
-Compatible Format: MPEG4, DVD, VCD, MP3, CD, CD-R, CD-RW, PICTURE-CD
-OSD/Audio/Subtitle Language: English/Polish/French/Spanish/Portuguese/German/Latin
-Last-Position-Memory: Yes, expediently watch all kinds of disc continuously

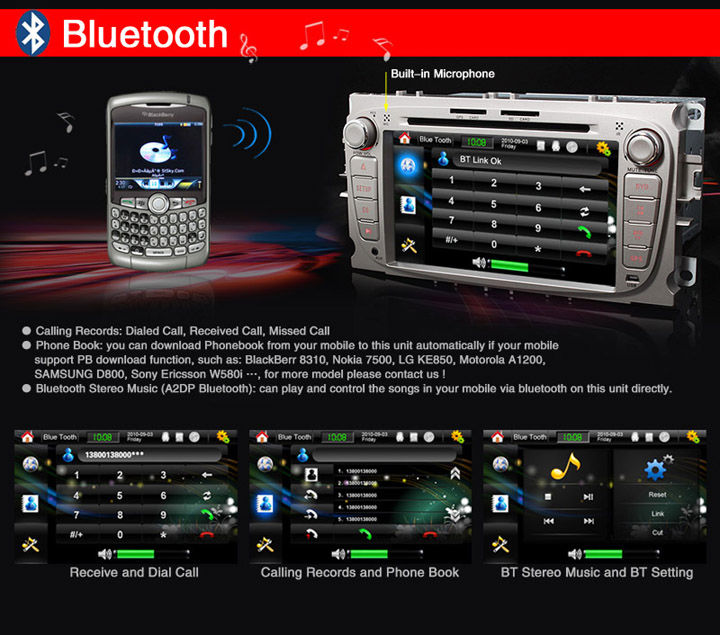

Bluetooth
-Version: V2.0
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes
-Phone Book: Yes, can download Phonebook from mobile to this unit
-Call Records: Dialed Call, Received Call, Missed Call
-Setup: Reset/Link/Cut

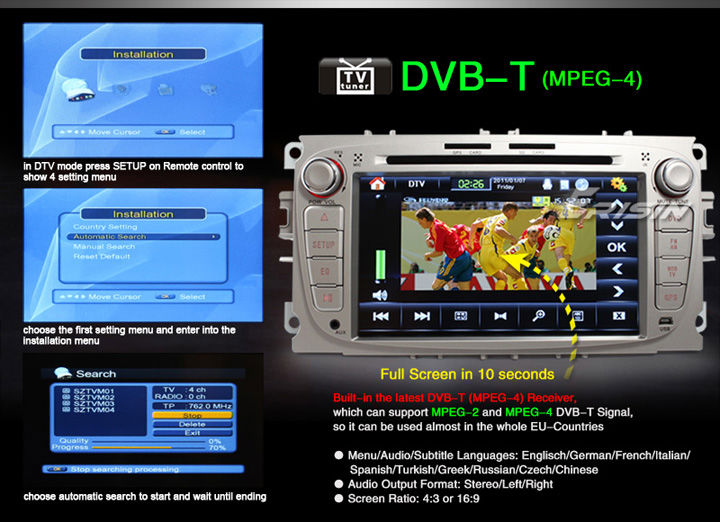

DVB-T
-Built-in DVB-T (MPEG 4) : Yes, support MPEG 2 and MPEG 4 Signal
-OSD Language: English/French/German/Italian/Spanish/Dutch/Greek...
-Full screen in 10 seconds : Yes
-Digital TV antenna Interface: Yes, on the back

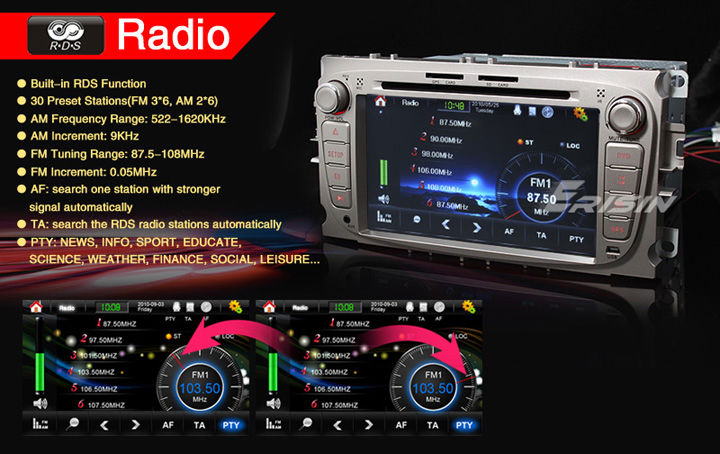

Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)

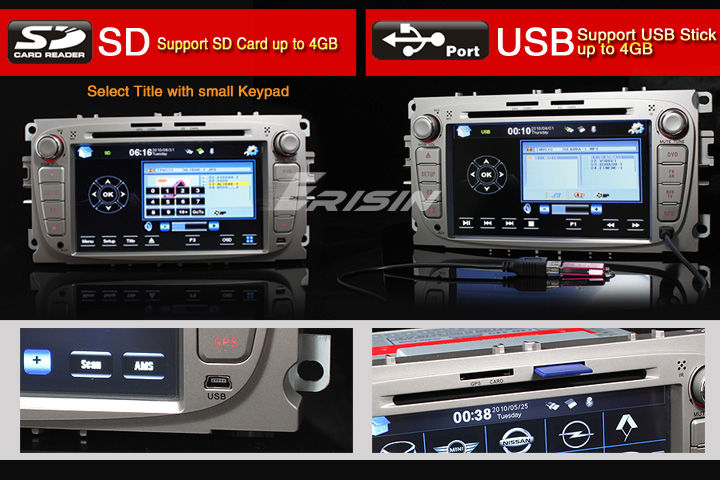

USB
-Position: On the front panel
-Capacity: 8GB
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes
SD
-Position: On the front Panel
-Capacity: 8GB
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes

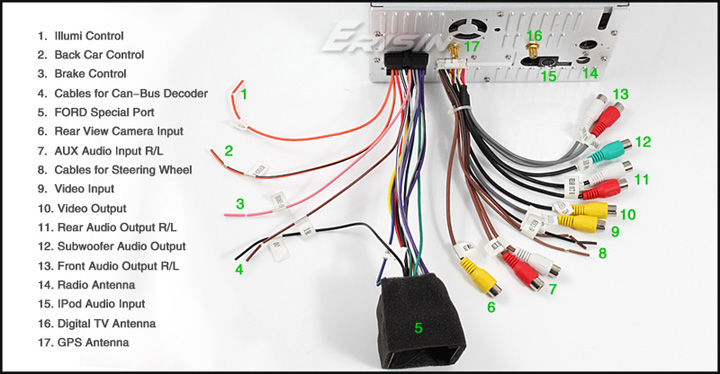

Input
-AUX Video In: One
-Camera Video In : One

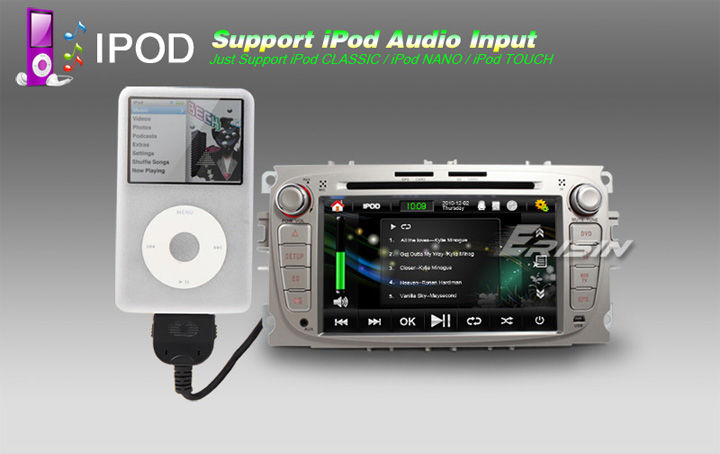

-Ipod In: One
-AUX Audio In: R/L
-Digital TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Back Sight Control: Yes
-Auto Antenna Control: Yes
-Hand brake Control: Yes
-Auto Mute Control: Yes
-Slide up/down on the TFT Screen: can switch the mode between home and current mode
-Slide left/right on the TFT Screen: can switch the mode (TV, Radio, USB, SD, BT...)

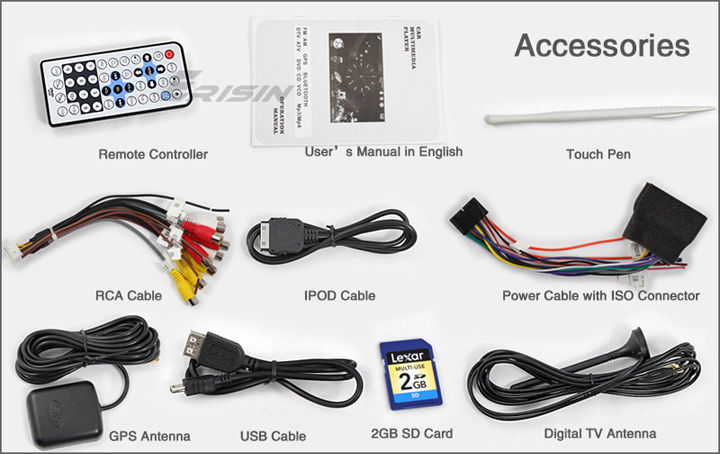

Accessories
-User's Manual in English: One
-Remote Controller (Battery excluded): One
-Power Cable with special port: One
-RCA Cable: Two
-GPS Antenna: One
-Free 2GB SD Card: One
-Digital TV Antenna: One
-Ipod Cable: One
-USB Cable: One
-Touch pen: One
